Product Advantages
● Overall, it is simple and beautiful.
● Easy to install, wide applicability, strong combinability
● High Durability
● System optimization can be carried out according to the actual roof environment.

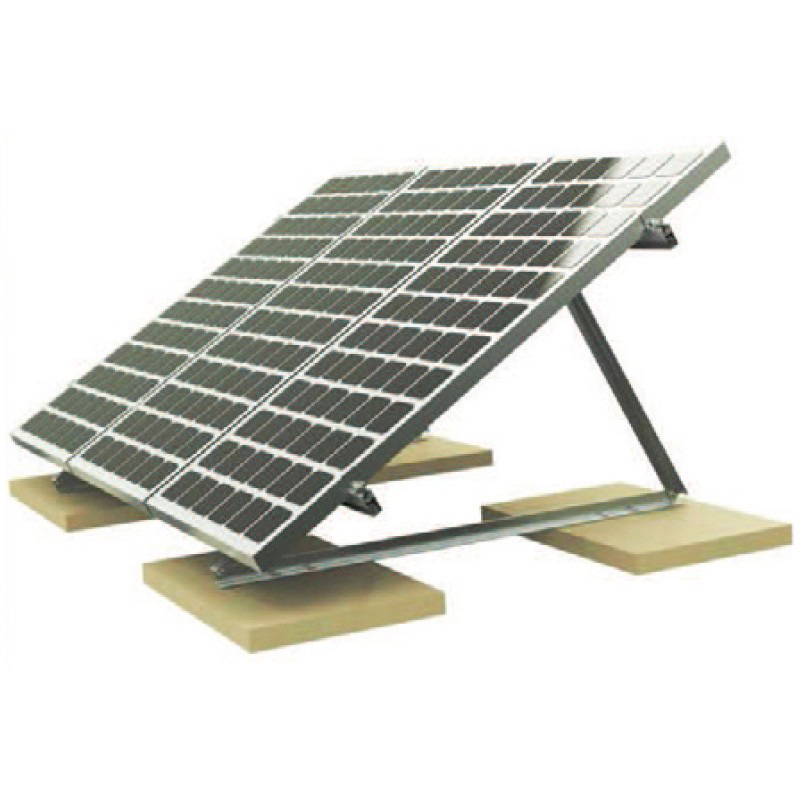

Flat roof installation system
-
- A: Adjustable tripod
-

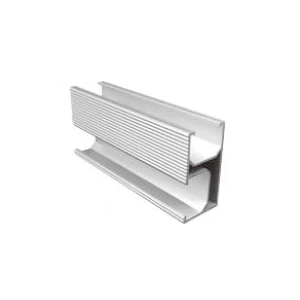

- B: Guide Rail G
-

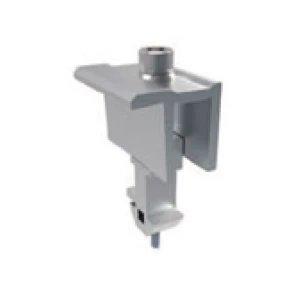

- C: Adjustable Mid Clamp for PV Modules
-

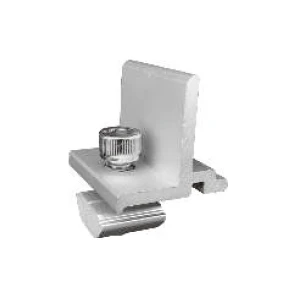

- D: Adjustable Edge Clamp for PV Modules
-

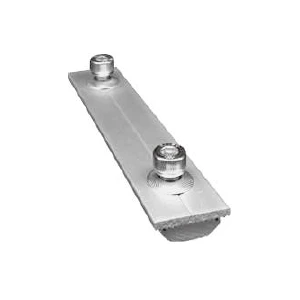

- E: Guide Rail Connector
-
- F: Guide Rail Clamp
| SN | Product Number | Name | Specification | Material |
| A | HJ-AFK | Adjustable tripod | 10-15°,15-30°,30-60° | AL6005-T5 |
| B | HJ-SSR-G | Guide Rail G | 长1.05/2.1/3.1/3.15m | AL6005-T5 |
| C | HJAIC | Adjustable Mid Clamp for PV Modules | 35~50mm | AL6005-T5 |
| D | HJ-AEC | Adjustable Edge Clamp for PV Modules | 35~50mm | AL6005-T5 |
| E | HJSSK | Guide Rail Connector | 140*29mm | AL6005-T5 |
| F | HJRCC-02 | Guide Rail Clamp | 40*35*34 | AL6005-T5 |
Installation location: Flat roof
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Product Material: High-strength aluminum alloy AL6005-T5, stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: according to customer requirements
Wind resistance: 22m/s (level 9 wind speed)
Snow load: 1.4KN/㎡
Corrosion Protection Treatment: Anodizing & Surface Shot Blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
