Product Advantages
● Overall, it is simple and beautiful.
● Easy to install, wide applicability, strong combinability
● High Durability
● System optimization can be carried out according to the actual roof environment.
Industrial photovoltaic power generation installation system
-

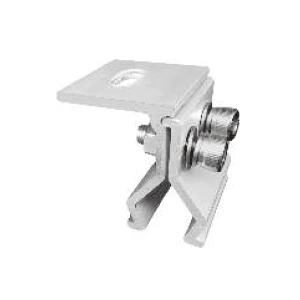

- A: Color steel tile clamp
-

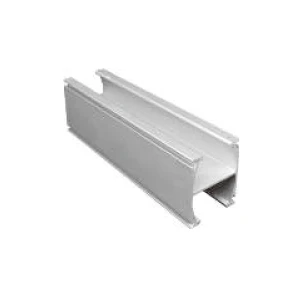

- B: I-shaped Guide Rail
-

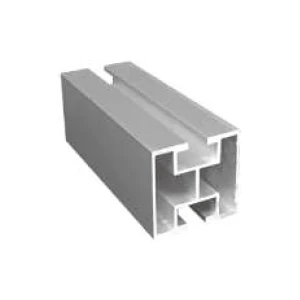

- C: I-shaped Guide Rail A
-

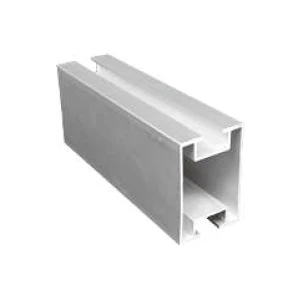

- D: I-shaped Guide Rail B
-

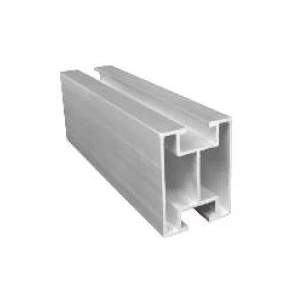

- E: I-shaped Guide Rail A*
-

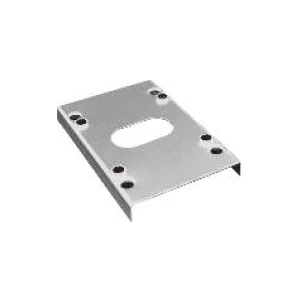

- F: Purlin Conductive Plate
| SN | Product Number | Name | Specification | Material |
| A | HJ-TRC-JC01 | Color steel tile clamp | Different tile types and specifications | AL6005-T5 |
| B | HJ-SLR-H | I-shaped Guide Rail | 30*36mm | AL6005-T5 |
| C | HJ-SLR-A | I-shaped Guide Rail A | 30*45mm | AL6005-T5 |
| D | HJ-SLR-B | I-shaped Guide Rail B | 40*40mm | AL6005-T5 |
| E | HJ-SLR-A* | I-shaped Guide Rail A* | 30*40mm | AL6005-T5 |
| F | HJ-CLD-54 | Purlin Conductive Plate | 31*50mm | SUS304 |
Installation location: Color steel tile/iron sheet tile roof
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Product Material: High-strength aluminum alloy AL6005-T5, stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: parallel to the tile surface
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡
Corrosion Protection Treatment: Anodizing & Surface Shot Blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Product Material: High-strength aluminum alloy AL6005-T5, stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: parallel to the tile surface
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡
Corrosion Protection Treatment: Anodizing & Surface Shot Blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
