Product Advantages
● Overall, it is simple and beautiful.
● Easy to install, wide applicability
● High Durability
● System optimization can be carried out according to the actual roof environment.
Ceramic tile roof installation system
-

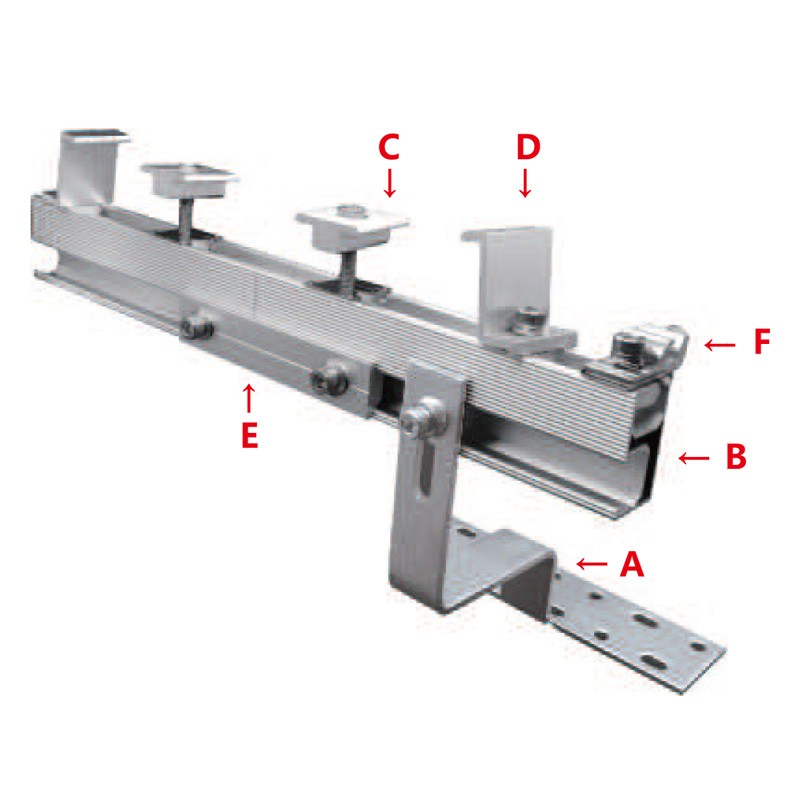

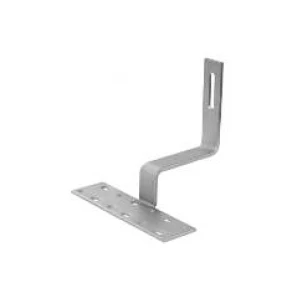

- A: Ceramic tile hook No. 1
-

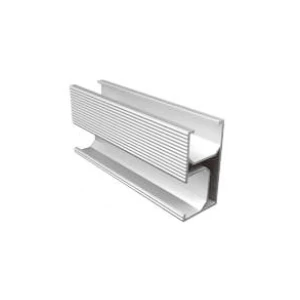

- B: Guide Rail
-

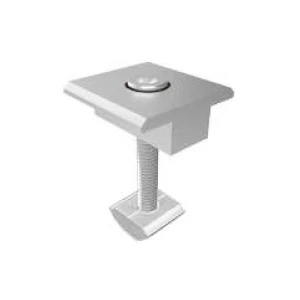

- C: Mid/Center Clamp for PV Modules
-

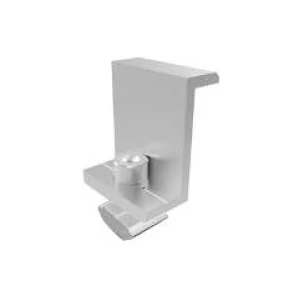

- D: Edge Clamp for PV Modules
-

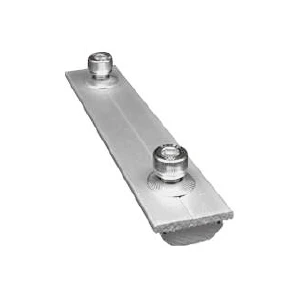

- E: Guide Rail Connector
-

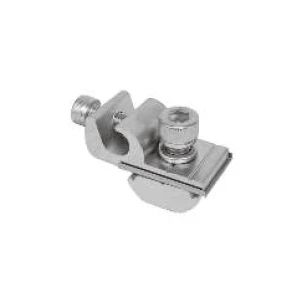

- F: Grounding Clip
| SN | Product Number | Name | Specification | Material |
| A | HJ-HK-CT01 | Ceramic tile hook No. 1 | 180*50*155 | SUS304 |
| B | HJ-SSR-G | Guide Rail | Length 1.05/2.1/3.1/3.15m | AL6005-T5 |
| C | HJ-FIC-T | Mid/Center Clamp for PV Modules | 35/40/45/50mm | AL6005-T5 |
| D | HJ-FEC | Edge Clamp for PV Modules | 35/40/45/50mm | AL6005-T5 |
| E | HJ-SSK | Guide Rail Connector | 140*29mm | AL6005-T5 |
| F | HJ-ELG | Grounding Clip | 42*20*14mm | AL6005-T5 |
Installation location: sloped roof
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Material: High-strength aluminum alloy AL6005-T5, stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: parallel to the tile surface
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡
Corrosion Protection Treatment: Anodizing & Surface Shot Blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Material: High-strength aluminum alloy AL6005-T5, stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: parallel to the tile surface
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡
Corrosion Protection Treatment: Anodizing & Surface Shot Blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
