Distributed Photovoltaic Modules

Aluminum alloy guide rail

Solar roof rack systems offer great flexibility in the design and planning of commercial or residential rooftop solar systems. They are used to install common framed or frameless solar panels parallel to the roof. Unique aluminum alloy rails, various clamps, and a variety of roof hooks can be pre-assembled at high levels, making installation simple and quick, saving your labor costs and installation time.
InquirySend Mail
  • Description
  • Parameters

    • Product Advantages

    ‌●‌ Simple and beautiful appearance

    ●‌ Exquisite structure, easy installation

    ●‌ Rich in styles, strong applicability

    ● Can be customized according to customer needs

    Aluminum alloy guide rail series

    G-shaped Guide Rail

    HJ-SSR-G

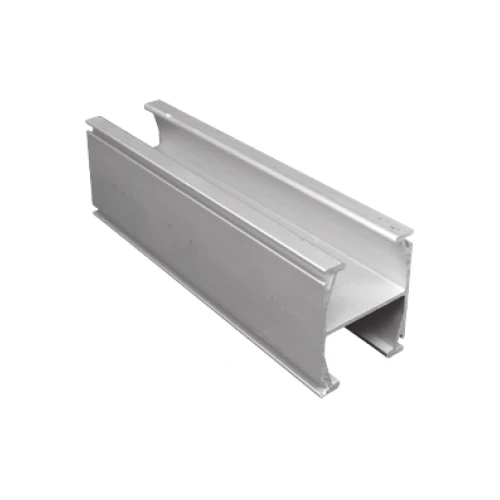

    I-shaped Guide Rail

    HJ-SLR-H

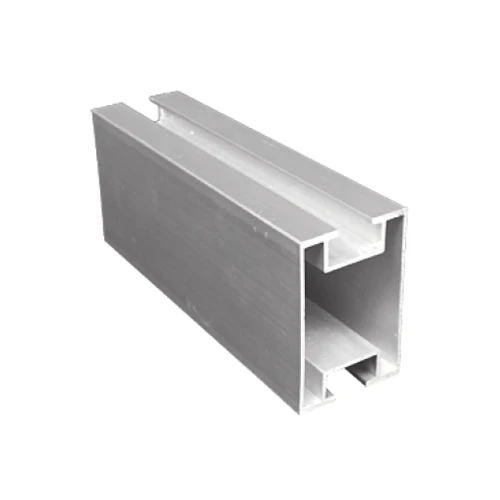

    I-shaped Guide Rail A

    HJ-SLR-A

    I-shaped Guide Rail B

    HJ-SLR-B

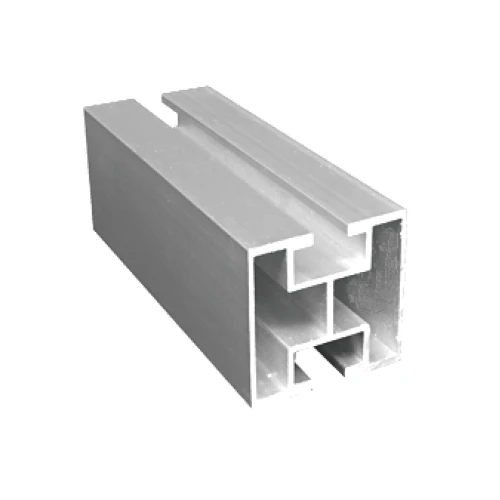

    I-shaped Guide Rail A*

    HJ-SLR-A*

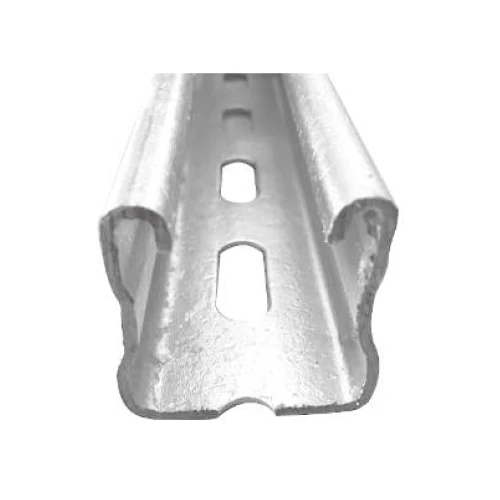

    C-shaped steel guide rail

    HJ-SLR-C
    Installation location: Common residential/commercial rooftops
    Solar panel type: crystalline silicon or amorphous silicon
    Product Material: High-strength Aluminum Alloy AL6005-T5
    Complies with standards: AS/NZS 1170 and other international standards
    Installation Angle: Adjust according to the roof conditions
    Component Arrangement: Horizontal or Vertical
    Corrosion Protection Treatment: Anodizing
    Quality Guarantee: 10-year quality assurance and a 25-year service life

    Other Products

    Roof Hook

    Roof hooks are essential products for the installation of roof support systems, suitable for common sloped roofs and all solar panels with frames or without frames on the market. Depending on the load-bearing capacity of the roof and waterproofing requirements, they can be fixed to the main beams using expansion bolts or wood screws, thereby connecting the roof to the bracket guide rails and securing the support.
    To provide customers with a simple and efficient installation solution, our company has designed roof hooks suitable for different tile surfaces, offering great flexibility and saving you time and labor costs.

    Color steel tile roof

    Color steel tile (iron sheet tile) roofs are the most common type of roof. In order to further improve the installation scheme for roofs, our company has developed an installation solution for inclined roofs ranging from 10 to 60 degrees.
    Due to the matching design of self-tapping screws, snap nuts and other components with guide rails, the entire system installation requires less time and labor costs, ensuring simplicity, flexibility, and stability as a whole.

    Color steel tile clamp

    The color steel tile clamp is suitable for installation on various common color steel tile roofs, locking the roof and reinforcing the support system of solar photovoltaic bracket rails.
    The color steel tile clamp is made of high-strength aluminum alloy AL6005-T5, which is windproof and reinforced, anti-oxidation, easy to install. It can not only save the installation cost of solar photovoltaic systems but also extend their service life.

    Adjustable bracket system

    The adjustable bracket system is the best solution for installing on sloped roofs, offering great flexibility to facilitate solar panel installation angles ranging from 10-15°, 15-30°, and 30-60°. All components are pre-assembled in a ready-to-use form, saving you time and making assembly and linking easier.
