Product Advantages
● Easy installation, adjustable angle
● Lightweight and easy to assemble
● Strong compatibility, safe and reliable
● Can be customized according to customer needs

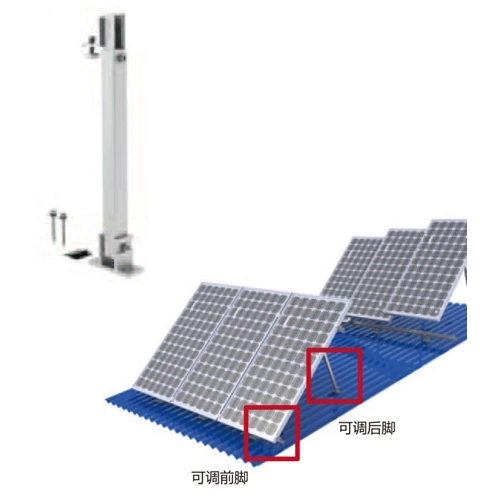

Adjustable front and rear feet
-
-
adjustable front foot
Technical improvements, adjustable front and rear foot length with waterproof rubber pads, extremely flexible application.

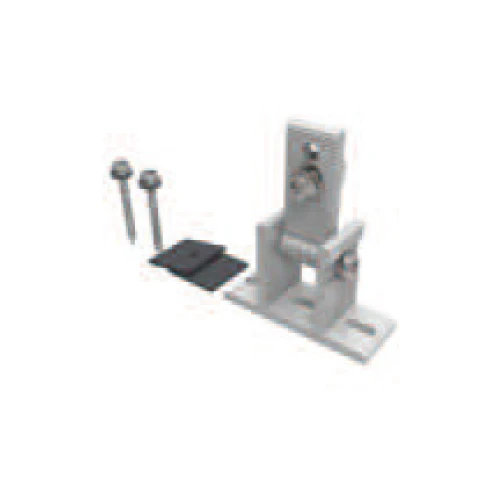

HJ-AFL
-
-
adjustable rear foot
Adjustable angle range 10-15°, 15-30°, 30-60°
HJ-ARL*

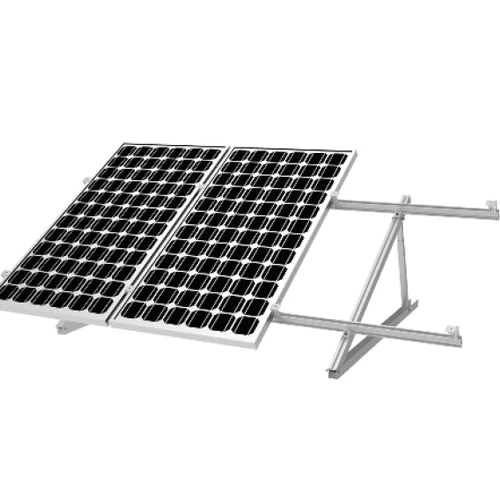

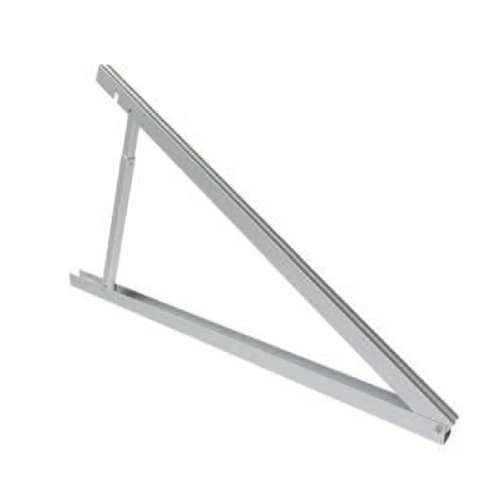

The tripod bracket
HJ-AFK*
-
- The tripod bracket system is suitable for hazardous and harsh environments. Whether on flat roofs or the ground, this system is very sturdy and durable, and it is easy and quick to install. The system ensures safe solar panel installation, saves time, and can be adjusted in angles of 10-15°, 15-30°, and 30-60°.
HJ-ARL*
Installation location: Color steel tile roof/cement roof
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Product Material: High-strength silver alloy AL6005-T5
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: 10-15°, 15-30°, 30-60°
Maximum wind speed: 18 m/s (Level 8 wind speed)
Snow load: 1.4KN/㎡Corrosion protection treatment: Anodizing
Quality Guarantee: 10-year quality assurance and a 25-year service life
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Product Material: High-strength silver alloy AL6005-T5
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: 10-15°, 15-30°, 30-60°
Maximum wind speed: 18 m/s (Level 8 wind speed)
Snow load: 1.4KN/㎡Corrosion protection treatment: Anodizing
Quality Guarantee: 10-year quality assurance and a 25-year service life
