Roof Hook

Roof hooks are essential products for the installation of roof support systems, suitable for common sloped roofs and all solar panels with frames or without frames on the market. Depending on the load-bearing capacity of the roof and waterproofing requirements, they can be fixed to the main beams using expansion bolts or wood screws, thereby connecting the roof to the bracket guide rails and securing the support.
To provide customers with a simple and efficient installation solution, our company has designed roof hooks suitable for different tile surfaces, offering great flexibility and saving you time and labor costs.
  • Description
  • Parameters
  • Product Advantages

    ‌●‌ Easy installation, overall aesthetics

    ●‌ Passivation shot blasting, high durability

    ●‌ Rich in styles, strong applicability

    ● Can be customized according to customer needs

    Ceramic tile roof hook

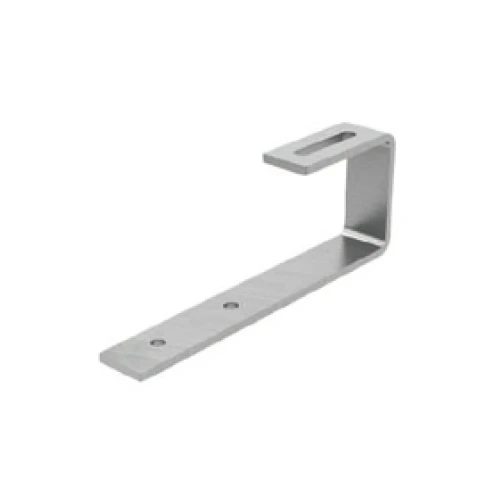

    HJ-HK-CT01

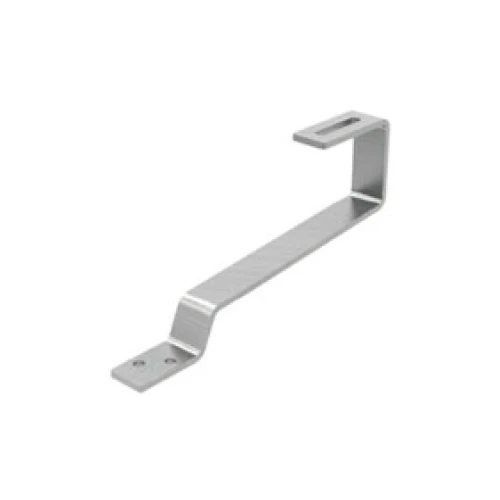

    HJ-HK-CT02
    HJ-HK-CT03

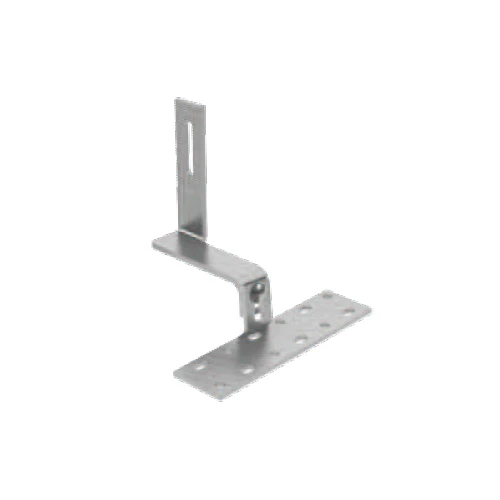

    HJ-HK-CT01T
    HJHK-CT02T
    HJHK-CT03S

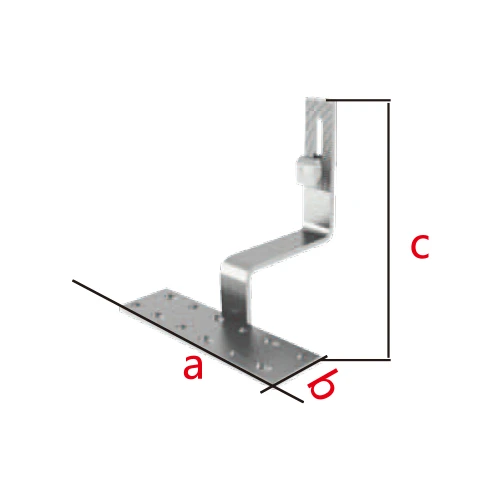

    SN Product Number Name Specification(a*b*c) Material
    1 HJHK-CT01 No.1 porcelain tile hook 180*50*155mm SUS304
    2 HJHK-CT02 No.2 porcelain tile hook 180*50*166mm SUS304
    3 HJ-HK-CT03 No.3 porcelain tile hook 180*50*128mm SUS304
    4 HJHK-CT01T Adjustable hook No.1 180*50*(170~200) SUS304
    5 HJ-HK-CT02T Adjustable hook No.2 180*50*(170~200) SUS304
    6 HJHK-CT03S Bidirectional adjustable hook 180*50*(120~180) SUS304


    Flat tile roof hook
    HJ-HK-FT01
    HJ-HK-FT02
    HJ-HK-FT03
    HJ-HK-FT04
    HJ-HK-FT04S
    石板瓦屋顶挂钩
    HJ-HK-ST01
    HJ-HK-ST02
    Multiple styles to choose from, and customized processing based on customer needs with drawings and samples
    Installation location: flat/sloped roof
    Supporting guide rail: Aluminum alloy extruded guide rail
    Solar panel type: crystalline silicon or amorphous silicon
    Material: High-quality stainless steel 304
    Complies with standards: AS/NZS 1170 and other international standards
    Installation Angle: Adjust according to the roof conditions
    Wind resistance: 25m/s (level 10 wind speed)
    Snow load: 1.4KN/㎡Corrosion protection treatment: surface shot blasting
    Quality Guarantee: 10-year quality assurance and a 25-year service life

    Other Products

    Color steel tile roof

    Color steel tile (iron sheet tile) roofs are the most common type of roof. In order to further improve the installation scheme for roofs, our company has developed an installation solution for inclined roofs ranging from 10 to 60 degrees.
    Due to the matching design of self-tapping screws, snap nuts and other components with guide rails, the entire system installation requires less time and labor costs, ensuring simplicity, flexibility, and stability as a whole.

    Color steel tile clamp

    The color steel tile clamp is suitable for installation on various common color steel tile roofs, locking the roof and reinforcing the support system of solar photovoltaic bracket rails.
    The color steel tile clamp is made of high-strength aluminum alloy AL6005-T5, which is windproof and reinforced, anti-oxidation, easy to install. It can not only save the installation cost of solar photovoltaic systems but also extend their service life.

    Adjustable bracket system

    The adjustable bracket system is the best solution for installing on sloped roofs, offering great flexibility to facilitate solar panel installation angles ranging from 10-15°, 15-30°, and 30-60°. All components are pre-assembled in a ready-to-use form, saving you time and making assembly and linking easier.

    Aluminum alloy guide rail

    Solar roof rack systems offer great flexibility in the design and planning of commercial or residential rooftop solar systems. They are used to install common framed or frameless solar panels parallel to the roof. Unique aluminum alloy rails, various clamps, and a variety of roof hooks can be pre-assembled at high levels, making installation simple and quick, saving your labor costs and installation time.
