Product Advantages
● Easy installation, overall aesthetics
● Widely used, easy to combine
● Windproof reinforcement, high durability
● Can be customized according to customer needs
Color steel tile clamp
-
- HJ-TRC-ZL02
-
- HJ-TRC-ZL05
-
- HJ-TRC-ZL08
-
- HJ-TRC-JC03
-
- HJ-TRC-JC04
-
- HJ-TRC-T01
Multiple styles to choose from, and customized processing based on customer needs with drawings and samples
| SN | Product Number | Name | Material |

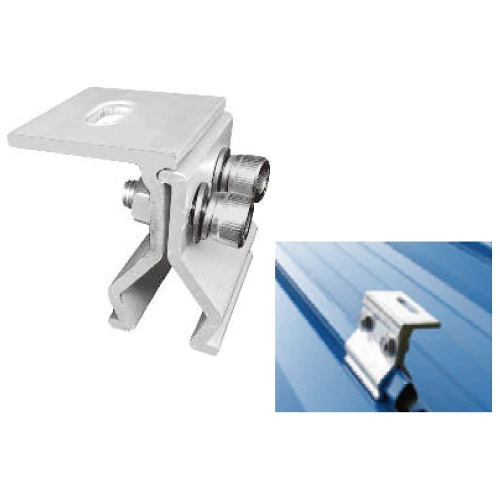

| 1 | HJ-TRC-ZL02 | 430L upright lock edge fixture | AL6005-T5 |
| 2 | HJ-TRC-ZL05 | 470L anti slip upright lock edge fixture | AL6005-T5 |
| 3 | HJ-TRC-ZL08 | 760-820 new edge tile rib fixture | AL6005-T5 |
| 4 | HJ-TRC-JC03 | Jig, corner center tile rib | AL6005-T5 |
| 5 | HJ-TRC-JC04 | Corner slip/buckle middle tile rib clamp | AL6005-T5 |
| 6 | HJ-TRC-T01 | NO.1 LADDER CLAMP | AL6005-T5 |
Installation location: Color steel tile/iron sheet tile roof
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Material: High-quality stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation Angle: Adjust according to the roof conditions
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡Corrosion protection treatment: surface shot blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Material: High-quality stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation Angle: Adjust according to the roof conditions
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡Corrosion protection treatment: surface shot blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
